FIRE PUMP SKIDS

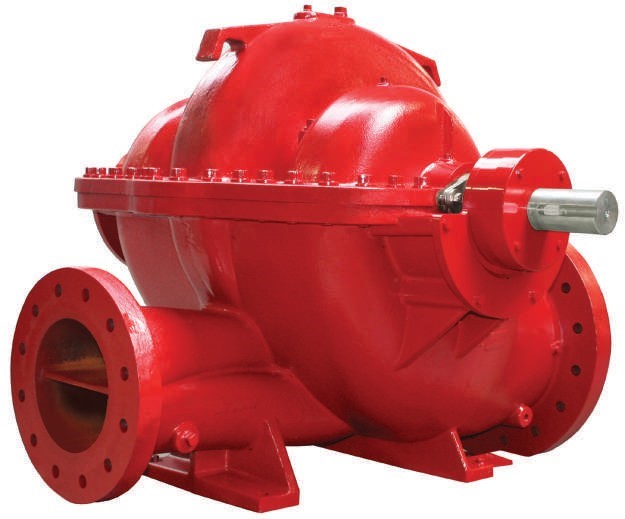

Volute Split Case Underwriting Laboratories (UL) Listed pumps are used within sprinkler installations to protect a wide range of properties from the effects of fire. There is a vast range of products available for individual property installation requirements. Units are compliant to the latest National Fire Protection Association (NFPA20) requirements and annexes, with further approvals to listed in the Underwriting Laboratories (UL).

Applications:-

• Offices
• Hospitals
• Warehouses
• High rise buildings
• Museums
• Shopping centers
• Supermarkets
• Large commercial units
• Industrial premises
• Industrial processes
• Oil rigs

A standard FM/UL set could consist of the following

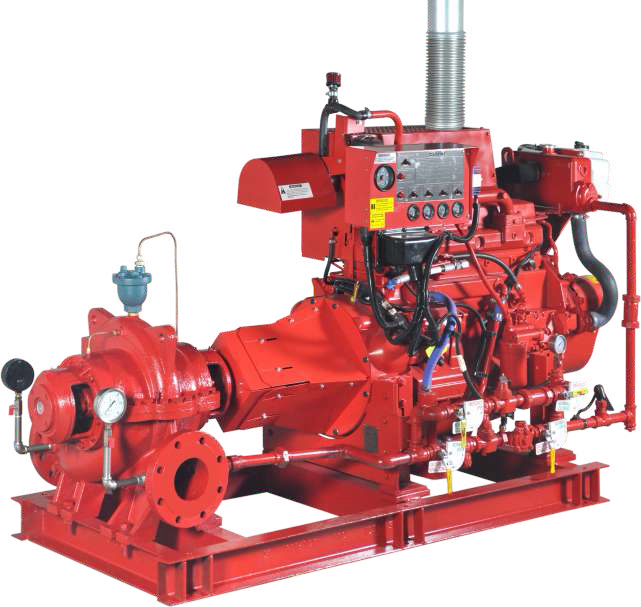

• Electric & Diesel pump set (including pump-end, FM/UL approved diesel engine, fuel tank*,

12v lead acid batteries, controller, suction and discharge pressure gauges and air release valve all on a single skid)

• Jockey pump (pump achieving a minimum of 1 bar over the closed valve pressure of the proposed duty pump)
• NFPA20 Jockey pump starter (direct on-line starter)
• Remote Alarm Panel (for monitoring of signals remote from the pump house)

Other ancilliary equipment available as follows:

• Electric & Diesel pumpset (including pump end long-coupled
• electric motor, suction and discharge pressure gauges
• and air release valve on a single skid)
• NFPA20 electric pump controller (wye-delta open transition tarter)
• Main relief valve
• Flow meters
• Louvres and fans
• Vertical turbine pumping equipment including
• column shafts, right-angled gear boxes and pump

heads
